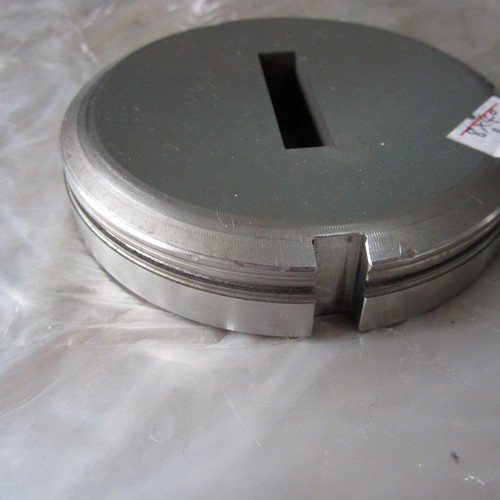

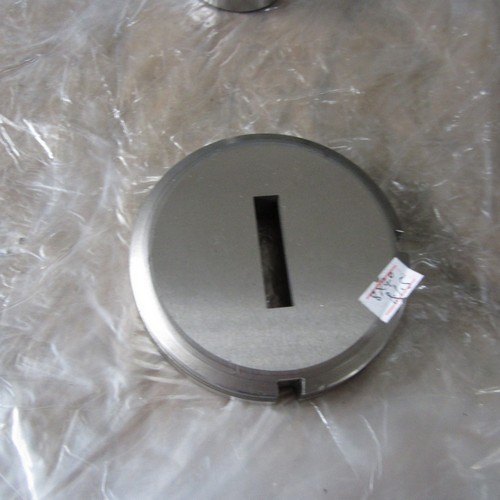

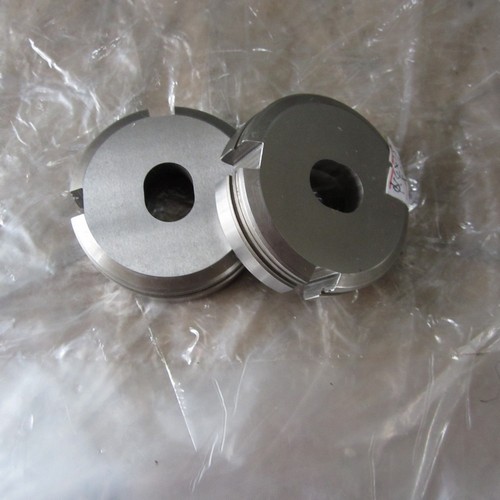

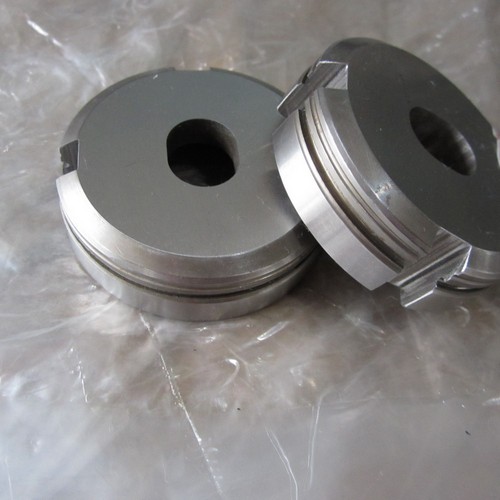

trumph Size I-B obround lower die

Times of attention:

Commodity type:Trumpf & Euromac Series Punch

Product description:Trumpf Series Punch Tooling Tenroy company is specialized in producing Trumpf series punch press tools. The full set tool is made of high quality tool steel with tight tolerances good performance and durable using. Trumpf standard punch an...

Consultation telephone:0555-2228055

Trumpf Series Punch Tooling
Tenroy company is specialized in producing Trumpf series punch press tools. The full set tool is made of high quality tool steel with tight tolerances, good performance and durable using.

Trumpf standard punch and die

Station Punch body Die
Size 0-A 0.77-6.00 /
Size 0-B 6.01-10.50 /
Size 1-A 0.77-15.00 1.00-32.00
Size 1-B 15.01-30.00 1.00-32.00
Size 2-A 30.01-40.00 32.01-77.00
Size 2-B 40.01-50.80 32.01-77.00
Size 2-C 50.81-60.00 32.01-77.00
Size 2-D 60.01-76.20 32.01-77.00
Size 3 76.21-105.00 77.01-107.00

Trumpf LongLife Series punch press tools

LongLife series cutting tools’s excellent wear resistance and toughness bring you excellent product performance, create high-quality stampings and extend die life. The advantages of tenroy longlife tools are as below:
A. Inserted punch blade
1) Made of M4PM high speed steel
2) Can use four types of shape tool: rectangle, oval, wedge and trapezoid
3) Optional imperial and metric sizes is between 0.787 "(19,98 mm) and 3.00" (76,20 mm)
4) Titanium and zirconium Maxima ™ coating is available
5) Size specifications:
PPDE*A Size 56    0.787(19,98) to 2.205(56,00)
PPDF*A Size 76    2.206(56,01) to 3.000(76,20)

B. Inserted punch holder
1) Can choose between two types of inserted punch holder
2) Integrated proofreading ring can assemble tools quickly and accurately
3) If you prefer to manually set the angle, then it can be used with heavy duty framing ring to match the inserted punch holder
4) LongLife’s any punches seat can be used in conjunction with the conventional machine strippers

C. Inserted die blade
1) Using M4PM tool steel, better strength, more wear-resistant
2) Can use monolithic or two-piece types
3) Can use four types of shape tool: rectangle, oval, wedge and trapezoid
4) Optional imperial and metric sizes is between 0.787 "(19,98 mm) and 3.00" (76,20 mm)
5) Can use 11 standard lower die clearance, or user sets the distance he needs
6) Size speicifications:
When ordering oval inserted punches, the inserted die must be rounded rectangle
DSDE*Single Inserted Die Size 56   0.787(19,98) to 2.205(56,00)
DEDE*Double Inserted Die Size 56   0.787(19,98) to 2.205(56,00)
DSDF*Single Inserted Die 76  0.787(19,98) to 3.000(76,20)
DTDF*Double Inserted Die 76  0.787(19,98) to 3.000(76,20)

D. Inserted die holder
1) Accurate positioning
2) Inserted die can be loaded into one inserted die holder
3) 2.205"(56,00 mm) inseted length
4) 3.000"(76,20 mm) inserted length
5) Can locate 0 and 90 degree accurately, greatly increase flexibility
6) Die holder combination dimensions:
DPD2H056 arrive to .250 x 2.000(6,35x56,00)
DPD2H076 arrive to .250 x 3.000(6,35x76,20)
7) Die shim size:
MATE01326 5,00 x 56,00 .012(0,30mm) thick
MATE01327 5,00 x 56,00 .020(0,51mm) thick
MATE01328 5,00 x 76,20 .012(0,30mm) thick
MATE01329 5,00 x 76,20 .020(0,51mm) thick

Trumpf Style Tool Cartridge & Die Plate
1) High-performance lightweight design
2) Fully compatible with the original
3) Aviation carbon fiber material & polymer steel, very durable and ecnomic
4) Tool cartridge and die plate can be supplied separately or as an accessory
5) It can be equipped with the following trumpf model that using new stripper: 200, 500R, 600L, 1000, 2000, 2010L, 2020R, 3000, 3000L, 5000R, 6000L

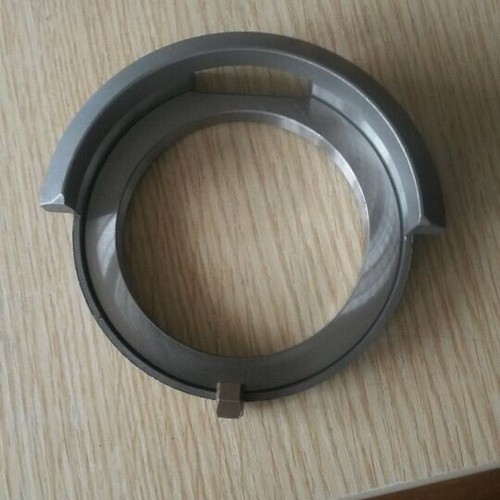

Trumpf Alignment Ring and Intermediate Ring

Advantages:
1) The precision machined keyway can accommodate the heat-treated punches lacating key, without any jig, you can follow the position of the die to make precise positioning.
2) Precision grinding upper and lower surfaces can take the initiative connected with punches shoulder, which reduce punch body stress and extend tooling life.
3) Make rigid connection between the punch body locating key and adjustment ring keyway, eliminating the possibility of punch body relative displacements.
4) Using seismic tool steel to eliminate scratches and extend using life.
5) Is compatible with traditional Trumpf Size 2 punch body.
6) Is interchangeable with QuickLock™ size1 and size2 punch body.

Applicable machine models: Various trumpf new and old model, Size I, Size II, 0-A, 0-B station, MT10, MT5 etc.
