We mainly produces press brake, shearing machine etc. With modern enterprise management methods, based on product quality management, its excellent quality, novel design, reasonable price and perfect after-sales service has won the praise of our customers. Our company is specializing in aviation, light industry, metallurgy, construction, automotive, electrical, decorating etc, in which area we provide the necessary professional machine and tools.

-Press Brake Series
Overall steel welding structure! Brand control system and electrics!

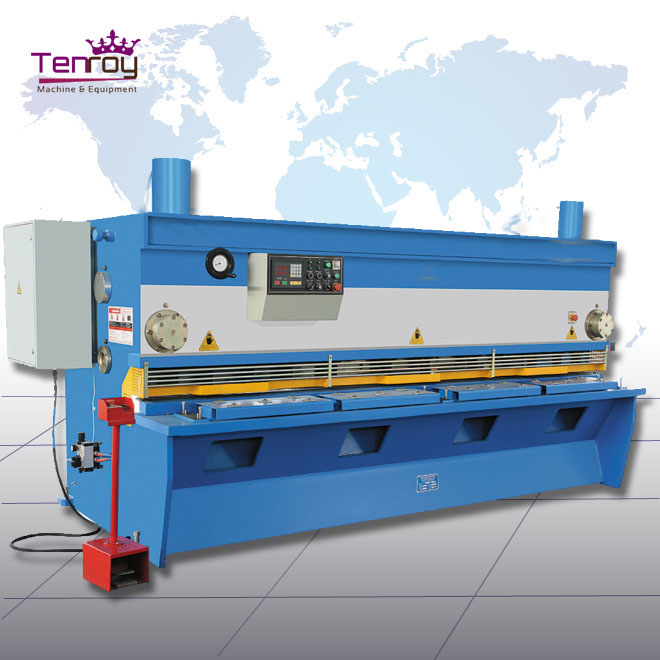

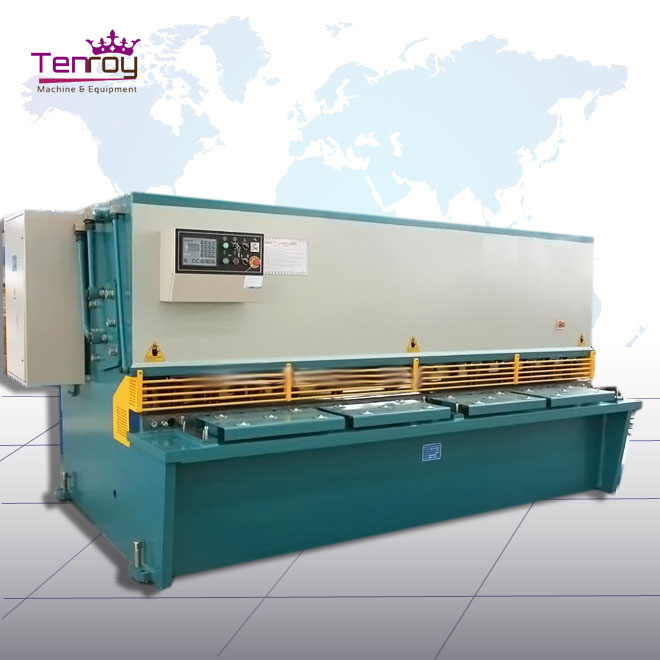

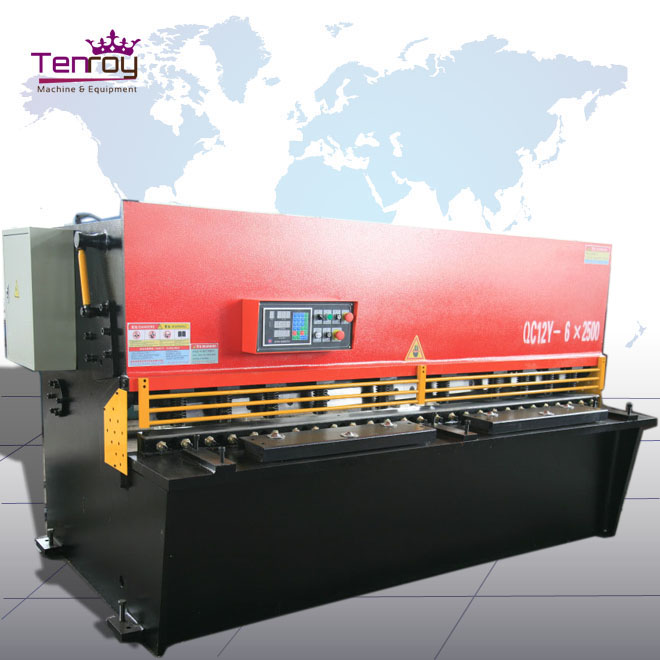

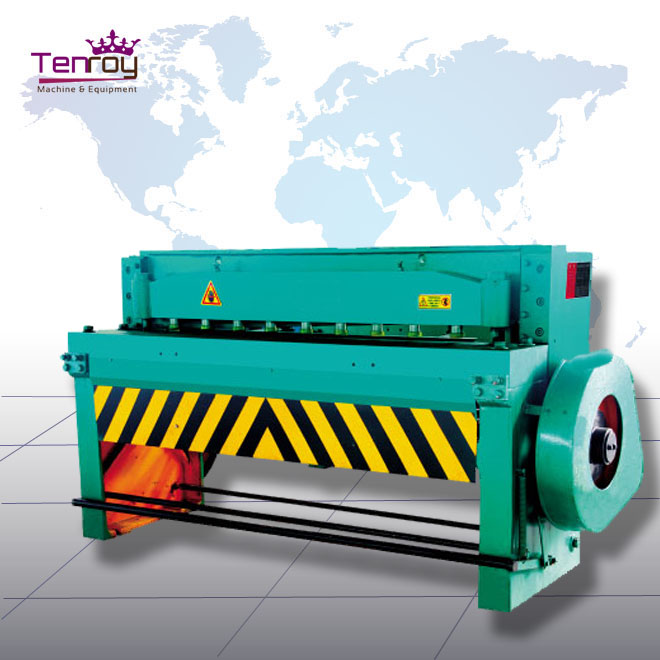

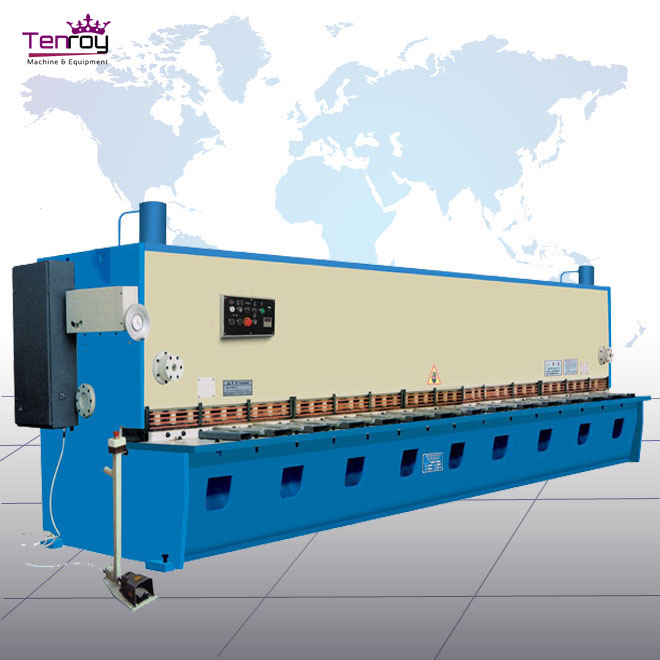

-Shearing Machine Series
Excellent rigidity and stability! Advanced hydraulic integrated system!

Features:
☆ with steel sheet welded structure,hydraulic drive system, accumulator back store, it has characters of convenient operation,reliable performance, and beautiful appearance.
☆ clearance between blades has display plate for swift and stepless adjustment.
☆ with light-alignment device,and be capable of stepless adjustment of stroke length of blade rack.
☆ adopt barrier protection arrangement for personnel safety.
☆ backgauge adopt e20 comtrol system
☆ ball screw, rolling guide, servo motor driving or variable frequency control, with low noise and high precision.
☆b lade clearance is selectable with shear counting function and numerical control adjusting function.

Specifications


Model	Plate Thickness (mm)	Plate width (mm)	Shearing Angle (°)	Back Gauge Range (mm)	Stroke No. (/min)	Main Motor Power (kw)	Outline Dimension (mm)
4*2500	4	2500	1.5	20-400	16	5.5	3000*1550*1600
4*3200	4	3200	1.5	20-600	13	7.5	3850*1550*1600
4*4000	4	4000	1.5	20-600	10	7.5	4500*1700*1700
4*6000	4	6000	1.5	20-600	8	11	6500*2100*2300
6*2500	6	2500	1.5	20-600	15	7.5	3000*1700*1650
6*3200	6	3200	1.5	20-600	12	7.5	3850*1700*1650
6*4000	6	4000	1.5	20-600	9	7.5	4600*1850*1700
6*6000	6	6000	1.5	20-600	5	15	6500*2100*2300
8*2500	8	2500	1.5	20-600	14	7.5	3050*1700*1700
8*3200	8	3200	1.5	20-600	10	7.5	3850*1700*1700
8*4000	8	4000	1.5	20-600	8	11	4650*1700*1700
8*6000	8	6000	1.5	20-600	6	15	6500*2100*2350
10*2500	10	2500	1.5	20-600	10	15	3050*1800*1700
10*3200	10	3200	1.5	20-600	9	15	3900*2000*1700
10*4000	10	4000	1.5	20-600	8	15	4650*2100*2000
10*6000	10	6000	1.5	20-800	6	18.5	6500*2100*2300
12*2500	12	2500	1.5	20-800	12	18.5	3150*2050*2000
12*3200	12	3200	1.5	20-800	10	18.5	3900*2150*2000
12*4000	12	4000	2	20-800	8	18.5	4700*2150*2100
12*5000	12	5000	2	20-800	6	22	5800*2450*2400
12*6000	12	6000	2	20-800	5	22	6900*2600*2700
12*8000	12	8000	1.75	20-800	4-6	22	8600*3250*3200
16*2500	16	2500	2	20-800	10	18.5	3150*2250*2000
16*3200	16	3200	2	20-800	10	18.5	3900*2250*2000
16*4000	16	4000	2.5	20-800	8	22	4650*2250*2200
16*5000	16	5000	2.5	20-800	6	30	5900*2600*2700
16*6000	16	6000	2.5	20-800	5	30	6900*2700*2900
20*2500	20	2500	2.5	20-800	8	30	3450*2300*2500
20*3200	20	3200	2.5	20-800	8	30	4150*2350*2700
20*4000	20	4000	2.5	20-800	5	30	4850*2600*2800
25*2500	25	2500	3	20-800	8	30	3200*2700*2900
25*3200	25	3200	3	20-800	5	30	4200*2700*3000
30*2500	30	2500	3.5	20-1000	4	30	3300*2900*3000
30*3200	30	3200	3.5	20-1000	4	30	4200*2900*3200

Above information are just for reference. Discrepancy exists between above data and the actual machine data, the machine data prevail.  Tenroy company reserves the right of final interpretation.

Sale Service:
1, the operation manual and quality certification will be along with machine.

2, one set of wear Annex and one set installation and maintenance tools will be provided.

3. One set high quality standard or special toolings be provided.

3, We provide one year's guarantee and lifetime maintenance
