We are presently also on the market for air duct making machine, such as auto duct production line, lock forming machine, shearing machine, flange forming machine, bending machine etc.

The application of this kind machine is: Air duct manufacture in industries of central air conditioning, ventilation duct, muffler, dust project, oil insulation, purification system etc.

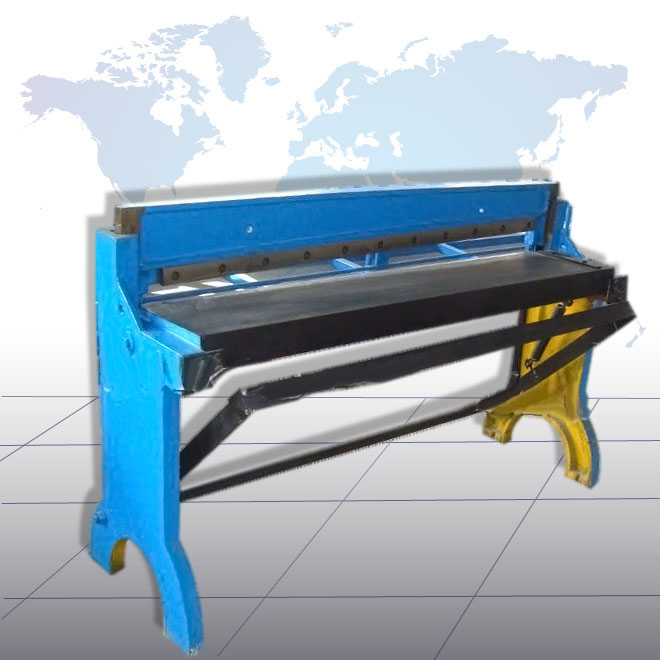

Pedal shear angle machine
Features
This shearing machine has beautiful appearance and novel structure. It adopts slide rail and the pedal spring uses sliding fixed pivot which will reduce two-thirds operating force. This shearing machine can be quipped with material pressing device. It has the features such as good shearing quality, light weight and easy to movement. It’s widely used in manual shearing baiting of thin sheet metal.

Specifications


Model		Q11-1*1000	Q11-1*1300	Q11-1*2000
Max. Cutting thickness (mm)	Mild steel	0.5-1.0	0.5-1.0	0.5-0.8
	Stainless  steel	0.6	0.5	0.5
Cutting length (mm)		1000	1300	2000
Dimension (mm)		1500*1100*1140	1900*1000*1140	2240*1100*1140
Weight (kg)		180	260	560
